Technology

  • Product outline

    1. Delivers ANSI/TIA-568.2-D Cat6A permanent link performance up to 50m, ideal for small and medium size installations
    2. Space-saving F/UTP design, enabling reliable wired networks to the places other systems can’t reach
    3. Reducing bundle sizes by almost half (cross-sectional area)
    4. 3bt 100W PoE++ capable
    5. Simultaneous UL444 CMG and CPR Dca fire rating for full compliance with US and EU safety requirements
    6. Conveniently packaged in a Reel-in-Box delivery system that’s easy to identify in a van or on-site
    7. AS/NZS S008:2010 compliant
    8. RoHS compliant
    9. Kordz Lifetime Warranty

  • Technical info

    CONSTRUCTION

    Conductor: 28AWG solid OFC 0.338 +0/-0.02mm
    Insulation: Polyethylene, 0.67±0.1 mm
    Twisting: 4 Twisted pairs of conductors, 2 single conductors paired
    Twisted Pair Colour Code:  1: white-blue / blue 2: white-orange / orange 3: white-green / green 4: white-brown / brown
    Shielding: Shielded (F/UTP)
    Jacket Material: FRLSZH composite
    Outer Diameter: 5.0 ± 0.5 mm

    MECHANICAL

    Minimum Bend Radius: Without load ≥ 16.0 mm; with load ≥ 32.0 mm
    Temperature Range: During operation -20 °C to 60°C; During installation 0°C to 50°C

    ELECTRICAL

    DC Resistance: Max. 23.6 Ω/100 m at 20°C
    Resistance Unbalance: Max. 4% at 20°C
    Insulation Resistance (500V): Min. 5000 MΩ/km at 20°C
    Mutual Capacitance: Max. 5.6 nf/100 m at 1 kHz
    Capacitance Unbalance (Pair to ground): Max. 330 pf/100 m at 1 kHz
    Nominal Velocity of Propagation: Nom. 67%
    Test Voltage (DC, 1min): 1 kV / 1 min

  • Warranty

    Kordz PRS SlimCat™ Network Cable is backed by our Lifetime Guarantee that promises maintained product functionality and performance for your lifetime.

  • Downloads

    DOWNLOAD DATASHEET

Kordz PRS SlimCat™ Cat6A Network Cable

Find a Distributor

Kordz PRS SlimCat™ Cat6A Network Cable is the industry-leading highly flexible shielded network cable designed for high performance and high-density installations that delivers all the power in half the size and goes where other Cat6A cables can’t. The slim 5mm diameter Cat6A F/UTP cable reduces bulk and makes installation easier whilst delivering IEEE802.3bt PoE++ at 100W and 10Gbps network connectivity up to 50 metres. Complete the Kordz PRS SlimCat™ system by pairing the cable with Kordz PRS SlimCat™ RJ45 Shielded Crimp Connectors and Cat6A Keystone RJ45 Sockets to ensure reliable, compact connectivity.

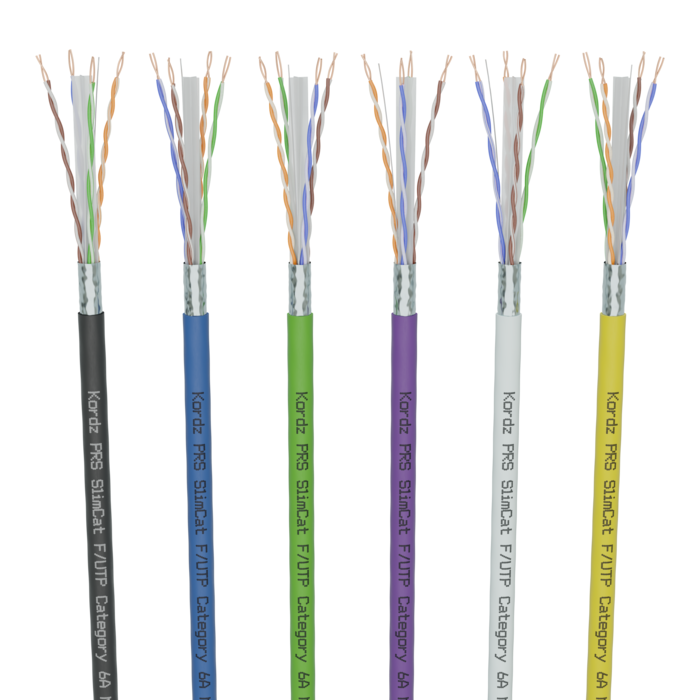

Colour options:

  • Product Code
  • Description
  • K34202-305M-BK

    Cat6A F/UTP Cable, 28AWG, CPR Dca LSZH, black, 305m / 1000ft reel-in-box
  • K34202-305M-BL

    Cat6A F/UTP Cable, 28AWG, CPR Dca LSZH, blue, 305m / 1000ft reel-in-box
  • K34202-305M-WH

    Cat6A F/UTP Cable, 28AWG, CPR Dca LSZH, white, 305m / 1000ft reel-in-box
